STAPERM CU-7-PCIR-20CM² with Smart Test Station

The PCIR 20 cm² assembly combines a permanent reference electrode and coupons for underground cathodic protection measurements and AC corrosion mitigation monitoring. It supports ON/OFF and native-potential testing, including IR-free measurements.

Technology and construction

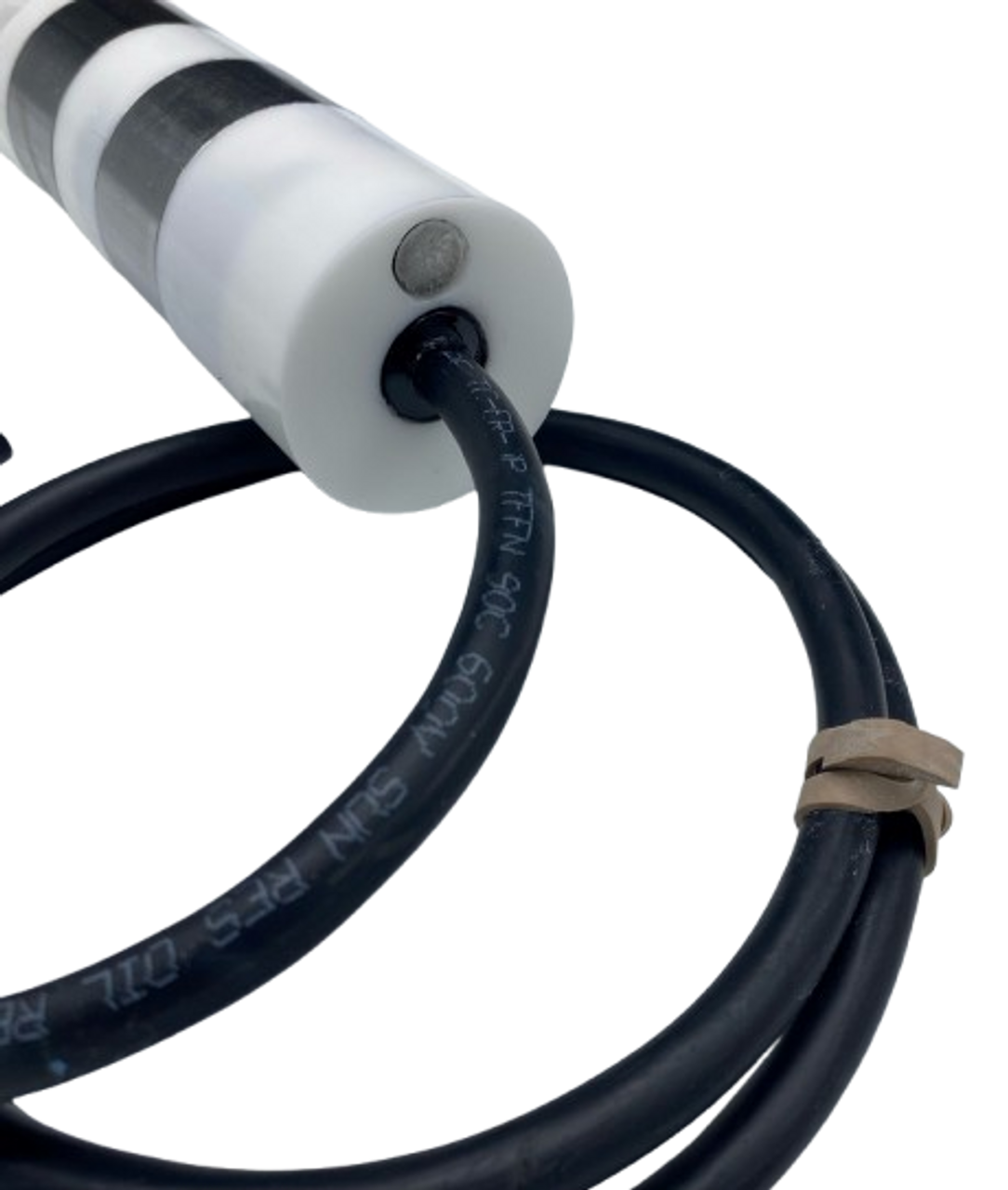

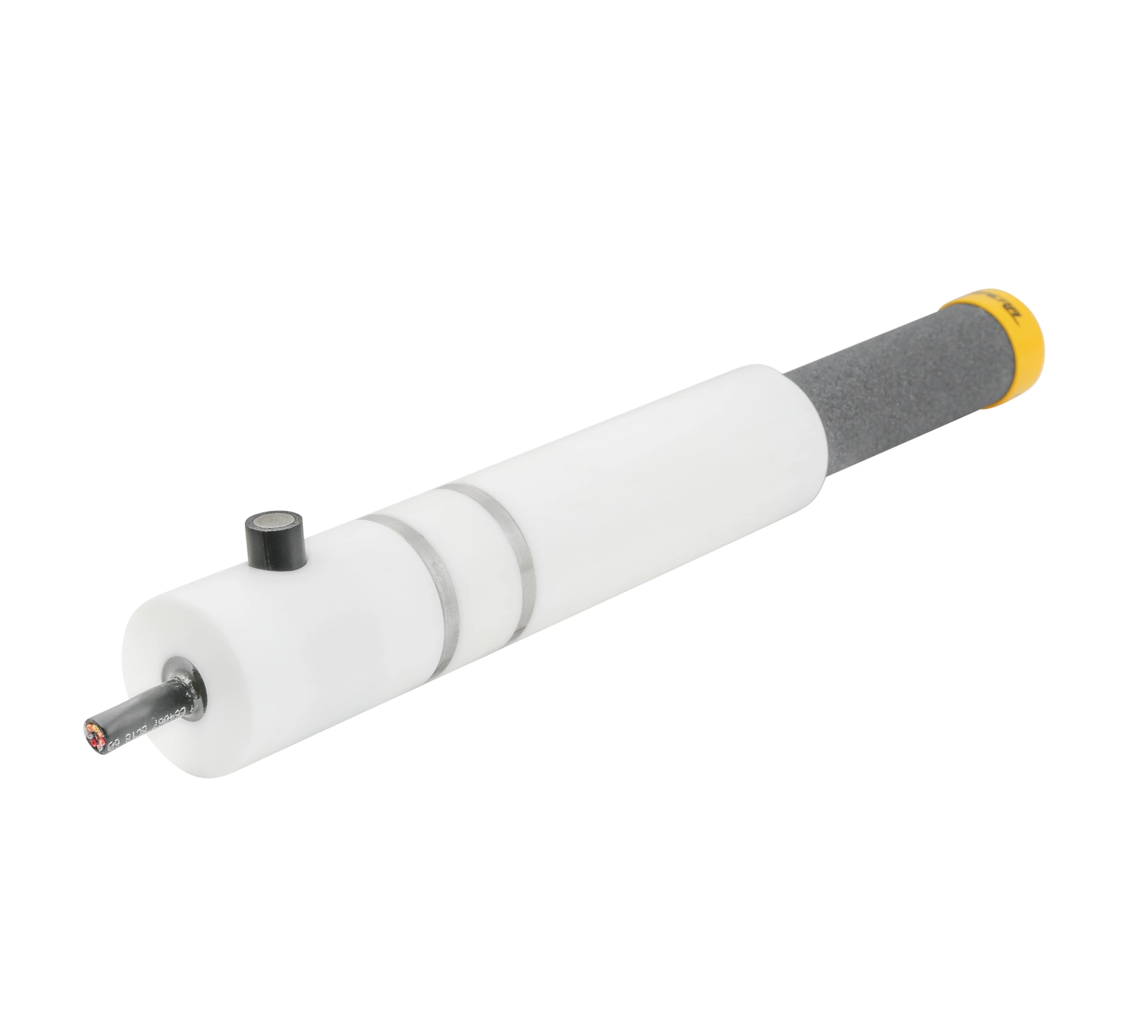

PCIR combines a permanent copper/copper sulfate reference electrode with steel coupons in a single underground monitoring assembly. The porous ceramic body provides 360-degree side contact, while the integrated 1 cm² AC coupon adds a dedicated measurement element for AC corrosion mitigation monitoring.

Key advantages

• Reference and coupons together: Provides the reference and exposed coupon surfaces needed for coupon-based cathodic protection assessment at one monitoring location.
• IR-free measurement capability: Supports coupon ON/OFF potential testing with the appropriate interruption and measurement arrangement, helping separate polarization potential from voltage drop through the soil.
• AC mitigation monitoring: The integrated 1 cm² AC coupon supports current-density evaluation using measured coupon current and known exposed area. The assembly monitors conditions; it does not itself remove induced AC.
• 360-degree ceramic contact: The ceramic sidewall provides distributed contact with the surrounding soil.
• Chloride-ion trap: Helps protect the reference electrolyte from chloride contamination within the stated soil chloride limit.

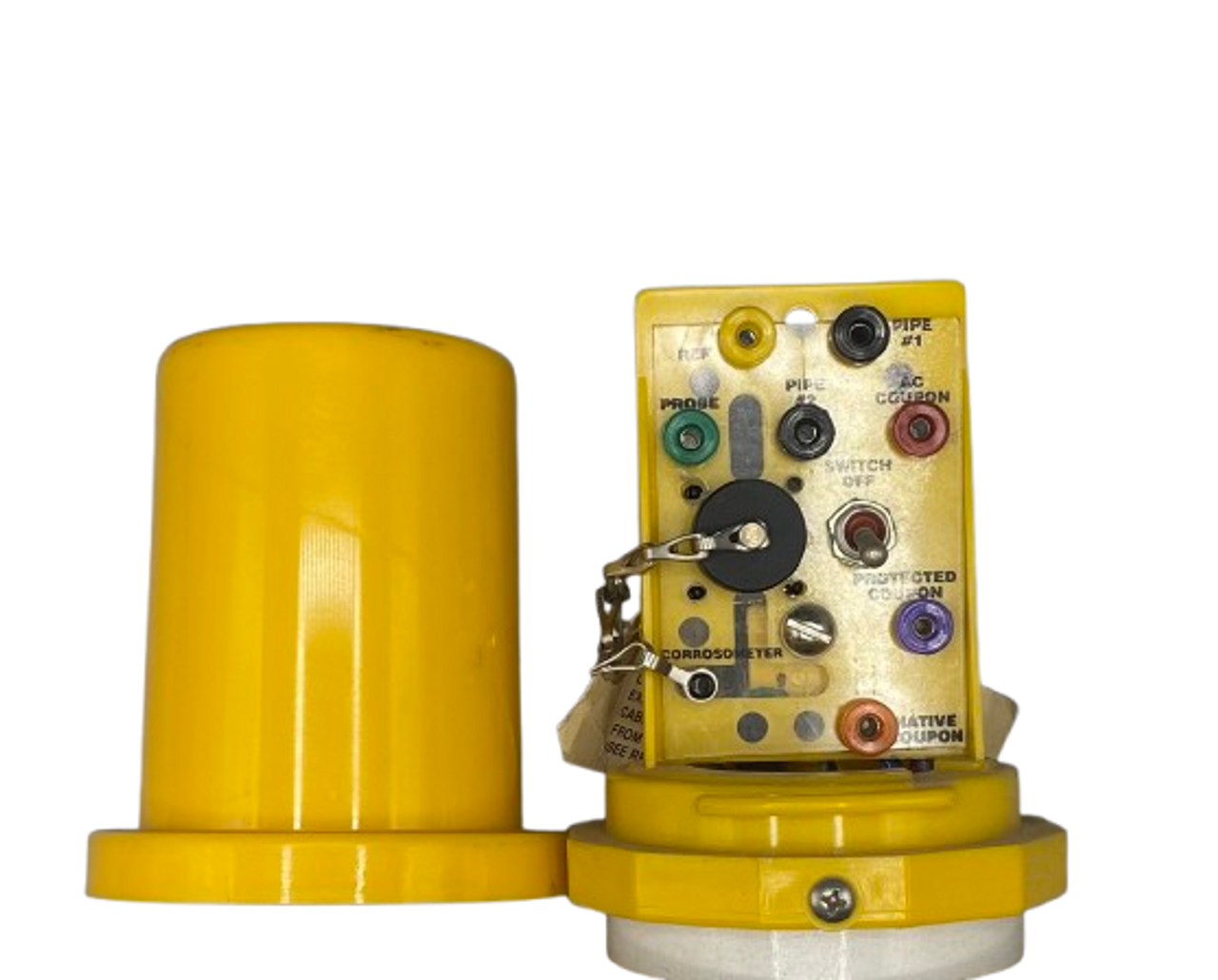

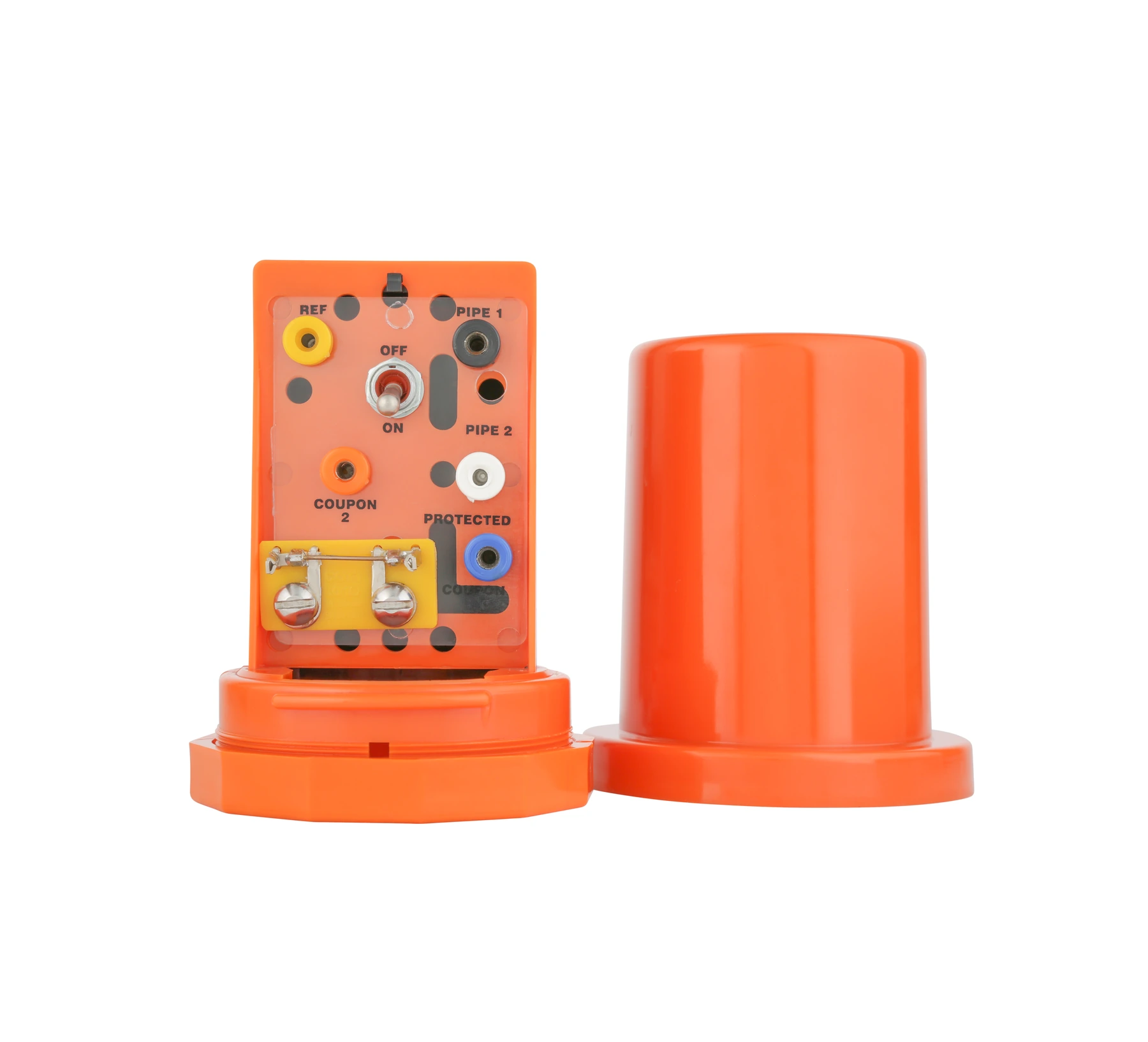

• Included Smart Test Station: Provides an instant-OFF switch, color-coded banana jacks and a 0.01-ohm shunt for organized field measurements.

Applications

Underground pipelines, coupon-based cathodic protection monitoring and AC mitigation monitoring locations, including pipeline corridors affected by nearby AC transmission systems.

Technical specifications

• Model coupon configuration: 20 cm².
• Integrated AC coupon area: 1 cm².
• Reference chemistry: copper/copper sulfate.
• For underground soils with chloride levels up to 200 ppm.
• Porous ceramic body with 360-degree side contact.
• Chloride ion trap.
• AISI 1018 steel coupon material.
• Lead: 30 ft of five-conductor #16 BCVN tray cable.
• Specified stability: ±5mV at 3µA.
• Operating temperature: 32°F to 150°F (0°C to 65.5°C).
• Specified service life: 30+ years.
• Includes Smart Station.
