Product Description

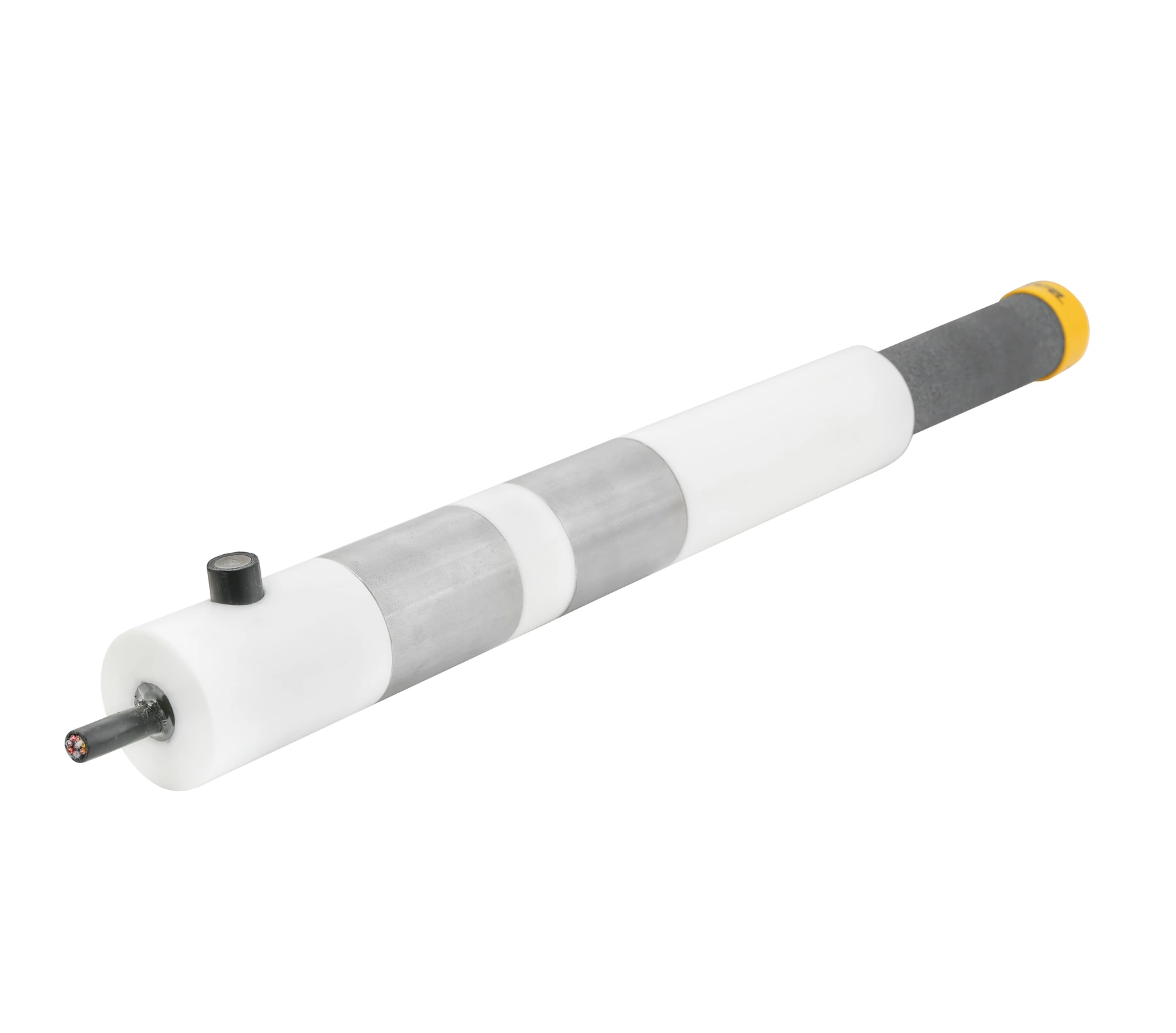

IR FREE COUPON REFERENCE ELECTRODE WITH SMART TEST STATION
IR-Free Coupon with Porous Ceramic Reference Electrode On-Potential, OFF-Potential Readings and Native Potential Readings with AC Coupon for Underground Applications with Smart Test Station
- The CU-7-PCIR electrode is designed for use in normal soil conditions. Moisture content changes in soil has no effect on electrode.
- Electrode has an infinite shelf life. Minimum Service life 30+ years.
- Copper-Copper sulphate electrodes equipped with advanced chloride ion trap to prevent chloride contamination.
- Electrode should not be used in soil with chloride content higher than 200 ppm. All electrodes are side reading 360° degrees.
Model CU-7-PCIR-200CM² with Smart Test Station
Copper-Copper Sulphate (Cu-CuSO₄) (for soil 200 ppm chloride and less.)
Size 1.5 DIA. x 7” long space age ceramic tube, cell equipped with coupon(s).
Lead Wire: 30’ of (5) conductor #16 AWG BCVN Tray Cable.
Stability: +-5 millivolts with 3.0 microamp load.
Temperature Range: 32° to 150°F (0 to 65.5°c)
The Smart Test Station is designed to be utilized with the IR Free Coupon Reference Electrode to provide the ultimate most accurate readings.
Sample Smart Test Station Layouts
Benefits:
✓High Impact Polycarbonate Plastic
✓High Capacity Terminal Board
✓18.8 Stainless Steel Hardware
✓Quality “Instant OFF” Toggle Switch Constant “ON”
✓ZapGuard Back Terminal Cover
✓Quality .01 Ohm Shunt
✓Color Coated Banana Jacks for Ease of Testing Measurements
✓Optional Corrosometer Corrosion Probe
✓Special Custom Layouts Available
✓Available in Multiple Colors & Custom Logos/Imprints
Benefits:
✓Single or Dual Coupons in 10cm², 50cm², 100cm²
✓Ideal for AC Mitigation, Protected Potentials and Native Potentials
✓Integrated 1cm² AC Mitigation Coupon
✓Available with Copper-Copper Sulphate, Zinc-Zinc Sulphate or Silver-Silver Chloride Reference Electrode.
✓Possibility of Cross Contamination of Electrode-to-Coupon and Coupon-to-Electrode has
been ELIMINATED.
✓Hydro Carbon Resistant
✓NO Special Installation Procedures Required
✓All Coupon AISI 1018 (ASTM A180)
In Use at GMC Electrical, Inc. Since 1984
QUALITY YOU CAN TRUST
