Portable Switchmode Cathodic Protection Rectifier

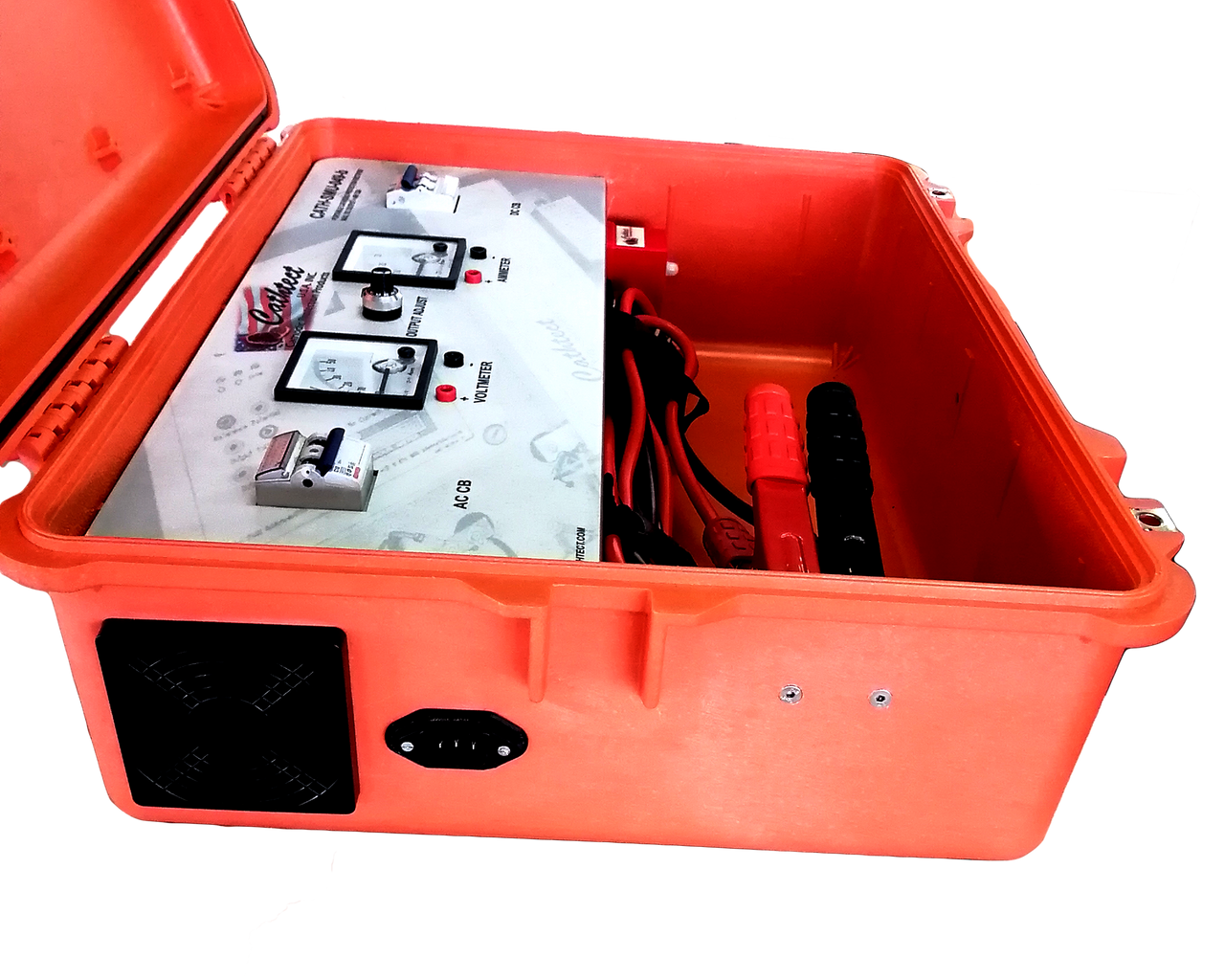

This portable switchmode rectifier is housed in a lockable case with wheels and a retractable handle for field cathodic protection work.

Specifications and features

• Series power options: 800W and 1,500W.
• Input: 90–230V AC, single phase.
• Efficiency: up to 95%.

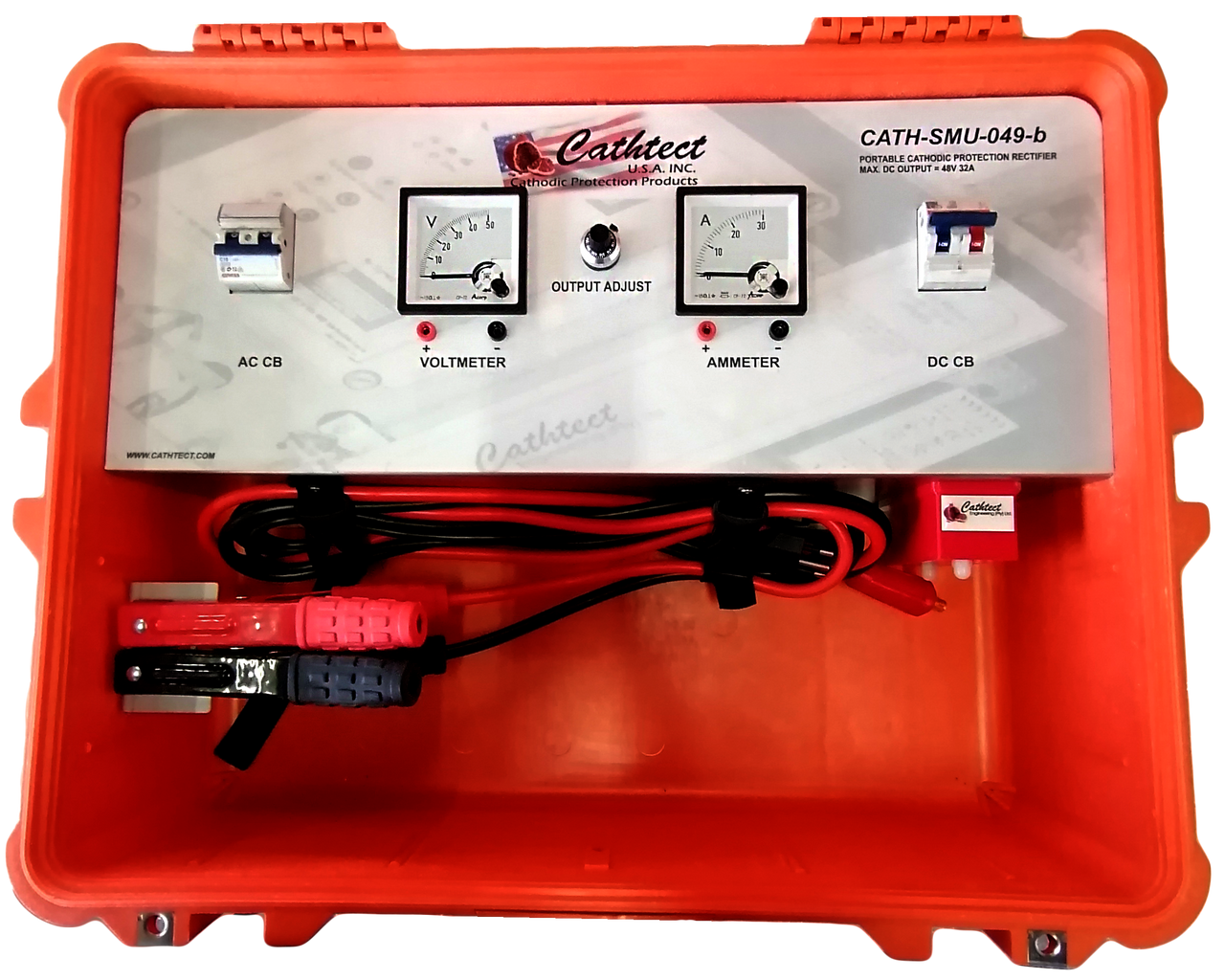

• Air-cooled design with analog voltage and current meters.
• Sealed 10-turn adjustment controls.

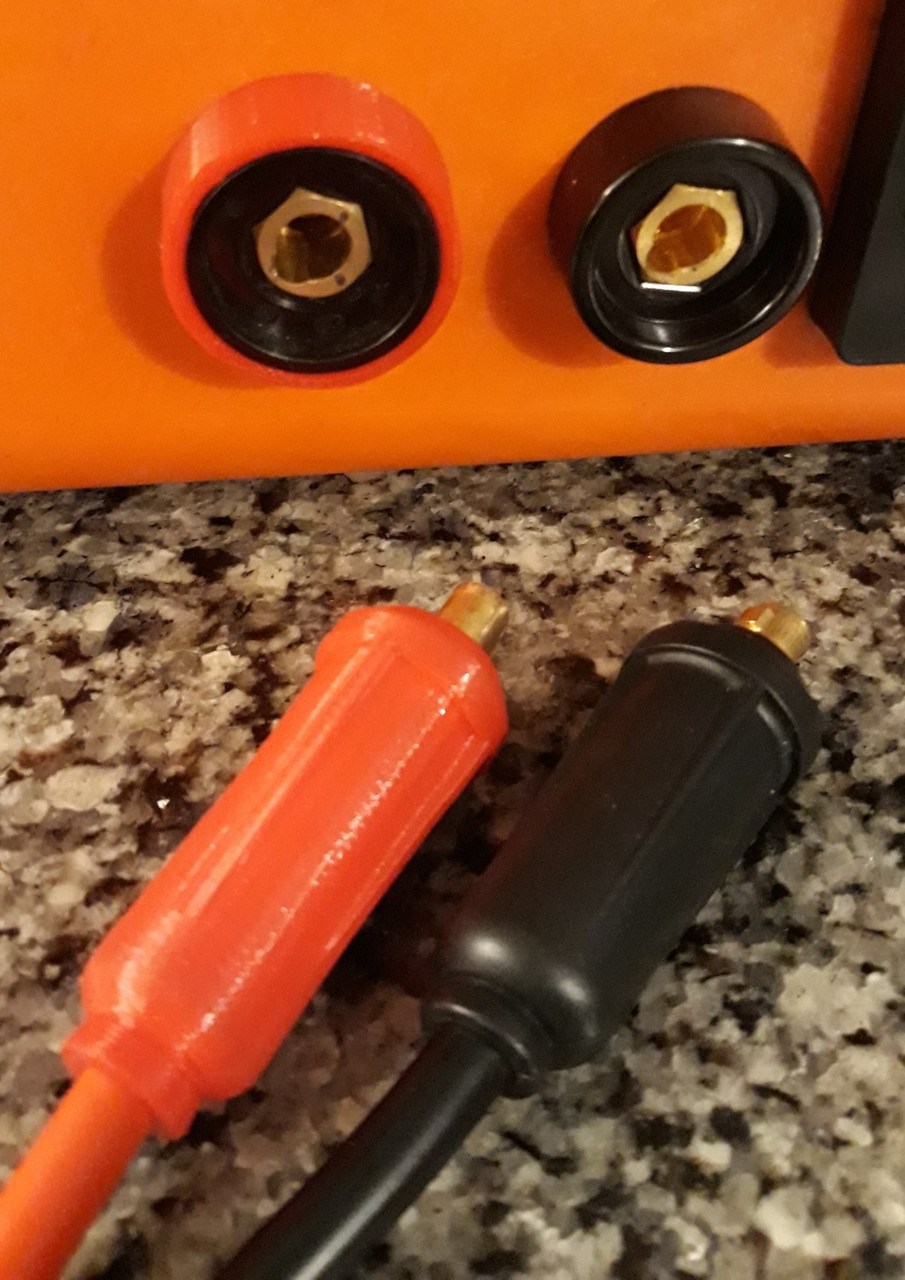

• Dead-front panel with shrouded terminals and captive banana sockets.
• Internal storage occupies approximately half of the enclosure.
• AC surge rating: 40kA, 8/20 µs; DC surge rating: 100kA, 10/350 µs.

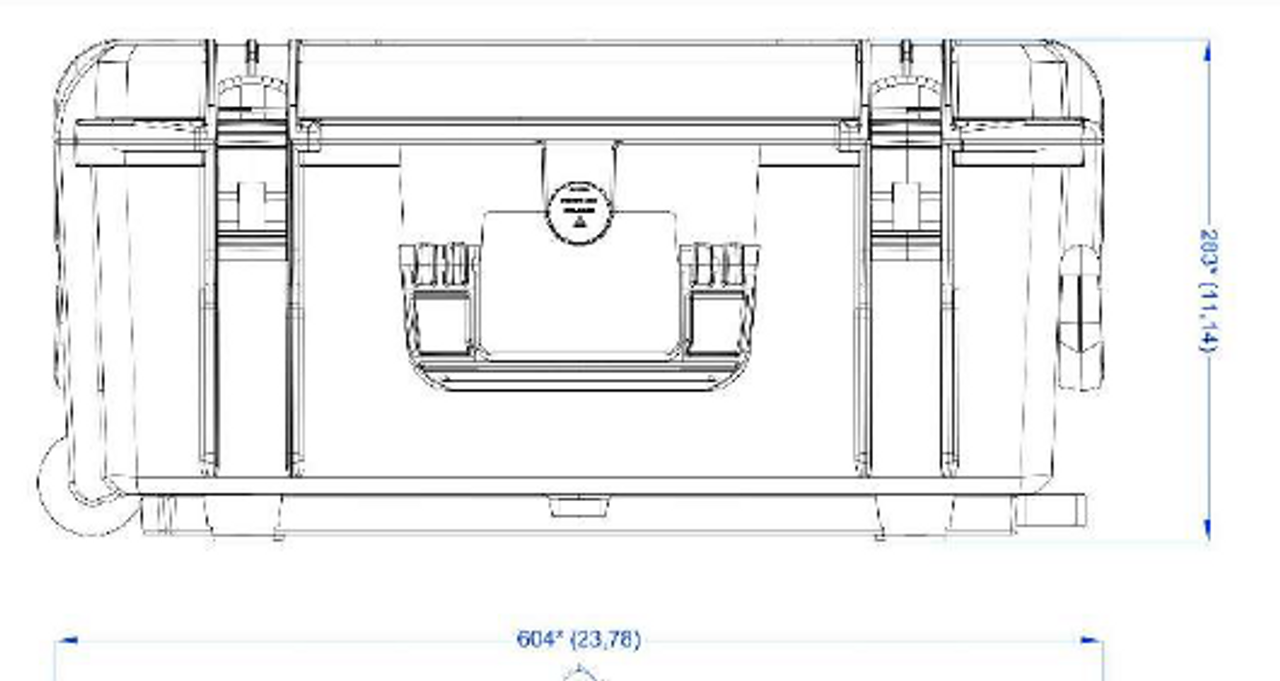

• Case dimensions: 23.78 × 18.82 × 11.14 in.
• Weight: 35 lb.
• Optional manual pouch.

Contact GMC Electrical, Inc. to confirm output voltage and current for the selected power configuration.
