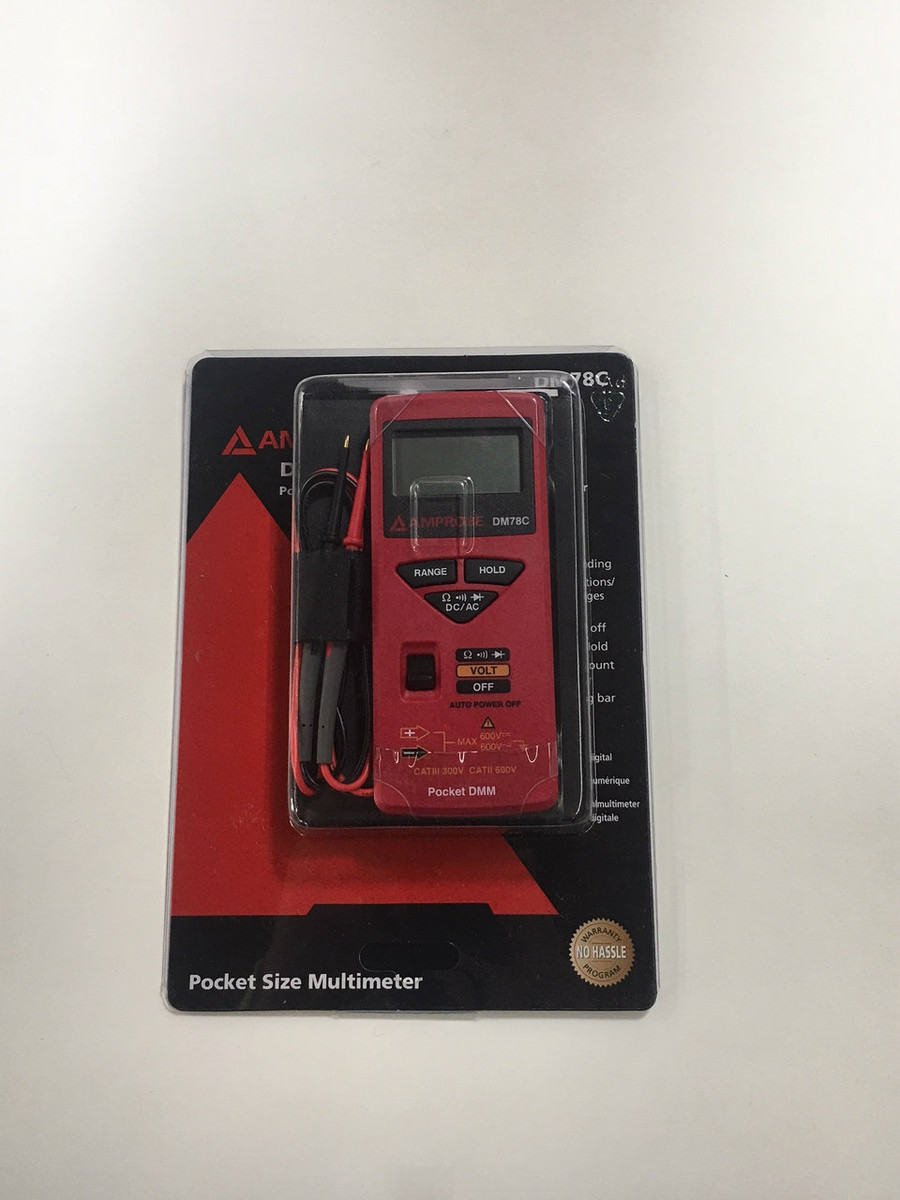

AMPROBE DM78C Pocket Size Digital Multimeter
PART / SKU DN78C
Request a quote for your project. Our team will confirm configuration, pricing, and availability.
Questions about this product? ↗The Amprobe DM78C is a compact digital multimeter with automatic ranging and a bar-graph display.
Specifications and features
- 3,400-count LCD.
- Average-responding AC measurement.
- Maximum voltage ranges: 600V AC and DC.
- Safety category: CAT III 300V.
- Basic accuracy: ±1% of reading + 2 digits.
- Resistance range: 34 megohms.
- Data hold, diode test, audible continuity and automatic power-off.
- 1.5V silver oxide battery supply.
- Includes case, test leads, batteries and instructions.
